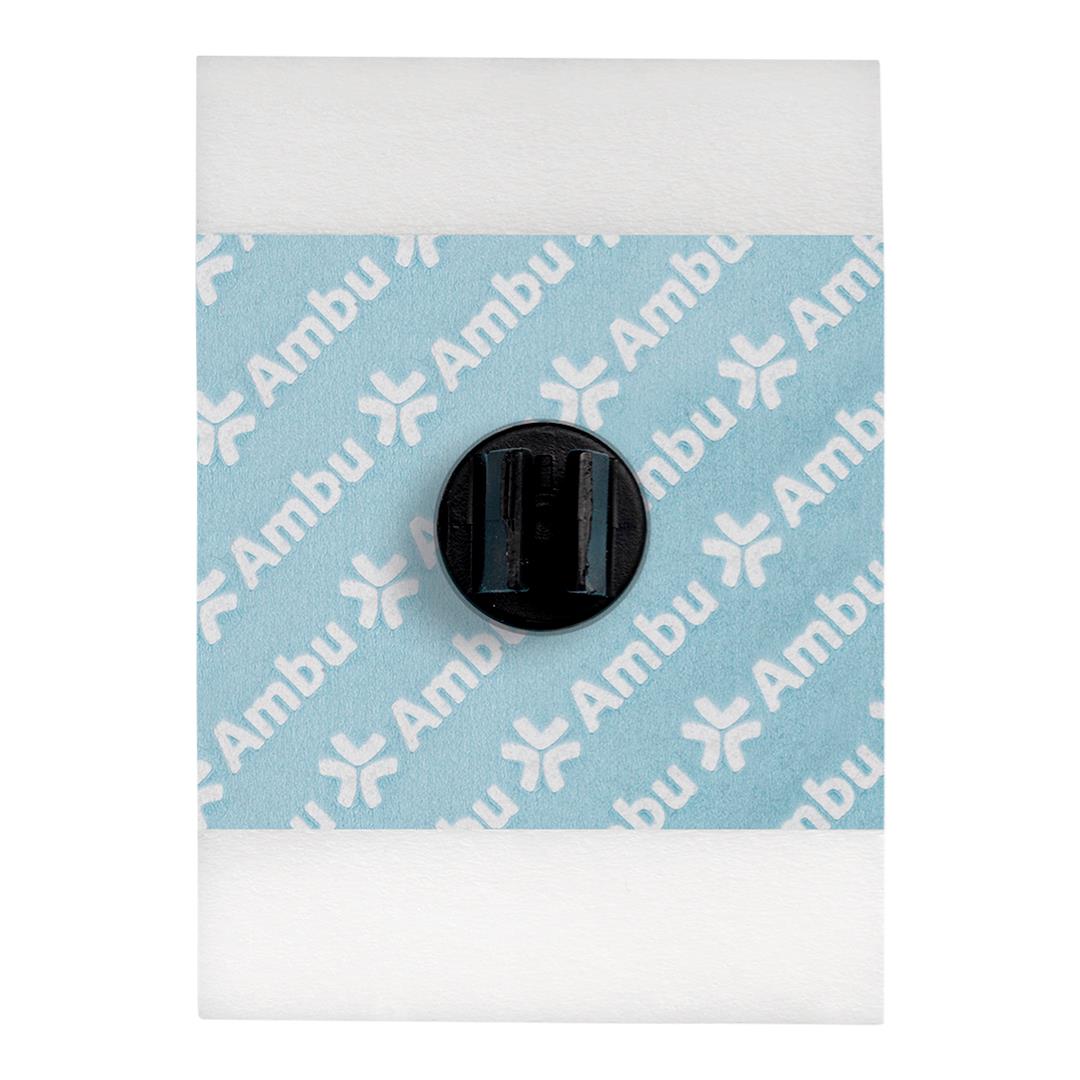

Ambu WhiteSensor 4540 Bridge Electrodes for Resting ECG
Ambu WhiteSensor 4540 Bridge Electrodes for Resting ECG
Couldn't load pickup availability
The Ambu WhiteSensor 4540 electrode is designed to provide fast and accurate ECG tracings during 12-lead procedures. With its highly conductive liquid gel and 4 mm fitting connector, it ensures excellent conductivity and reliable adhesion.
Specifications
Specifications
Electrode dimensions: 32 x 44 mm
Adhesive surface: 1,079 mm²
Sensor material: Silver/Silver chloride (Ag/AgCl)
Nature of the gel: Liquid gel
Thickness without connector: 1.5 mm
Typical AC Impedance: 200 Ω
Typical DC bias voltage: 1.0 mV
Typical defibrillation residual voltage: 12 mV
Compatibility: Radiolucent and MRI compatible
Features
Features
Highly conductive liquid gel: Ensures efficient transmission of electrical signals for accurate ECG tracings.
Superior adhesiveness: Allows secure fixation of the electrode, reducing the risk of detachment during the examination.
Flexible foam external support: Provides increased patient comfort and facilitates electrode application.
4mm radiolucent connector: Allows X-ray or CT examinations to be performed without interference.
PVC and latex free: Minimizes the risk of allergic reactions, suitable for sensitive patients.
The Ambu WhiteSensor 4540 electrode is ideal for healthcare professionals looking for a reliable solution for 12-lead ECGs. Its innovative design and high-quality materials ensure optimal performance and increased patient comfort.
